Referencing Wi-Fi Channel Numbers Correctly

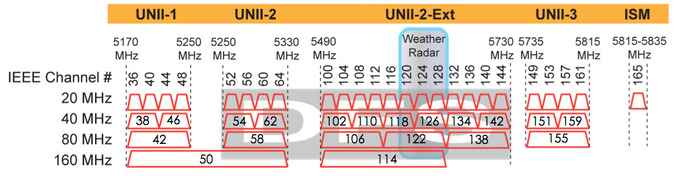

Wide channel numbering changed with 802.11ac:

• 802.11n Channels (the "old" way)


•



  • One 20 MHz primary channel, with a channel extension above or below


  • 40 MHz Example: Channel 36, +1


  • 40 MHz Example: Channel 40, -1


  • 40 MHz Example: Channel 36+40


  • This terminology should no longer be used









• 802.11ac Channels (the "new" way)


•



  • Reference the center channel frequency for the entire 40/80/160 MHz wide channel


  • Designate one 20 MHz portion of the wide channel as the Primary 20 MHz


  • 40 MHz Example: Channel 38 with Primary 20 MHz channel 36


  • 80 MHz Example: Channel 155 with Primary 20 MHz channel 149


  • 160 MHz Example: Channel 50 with Primary 20 MHz channel 44
